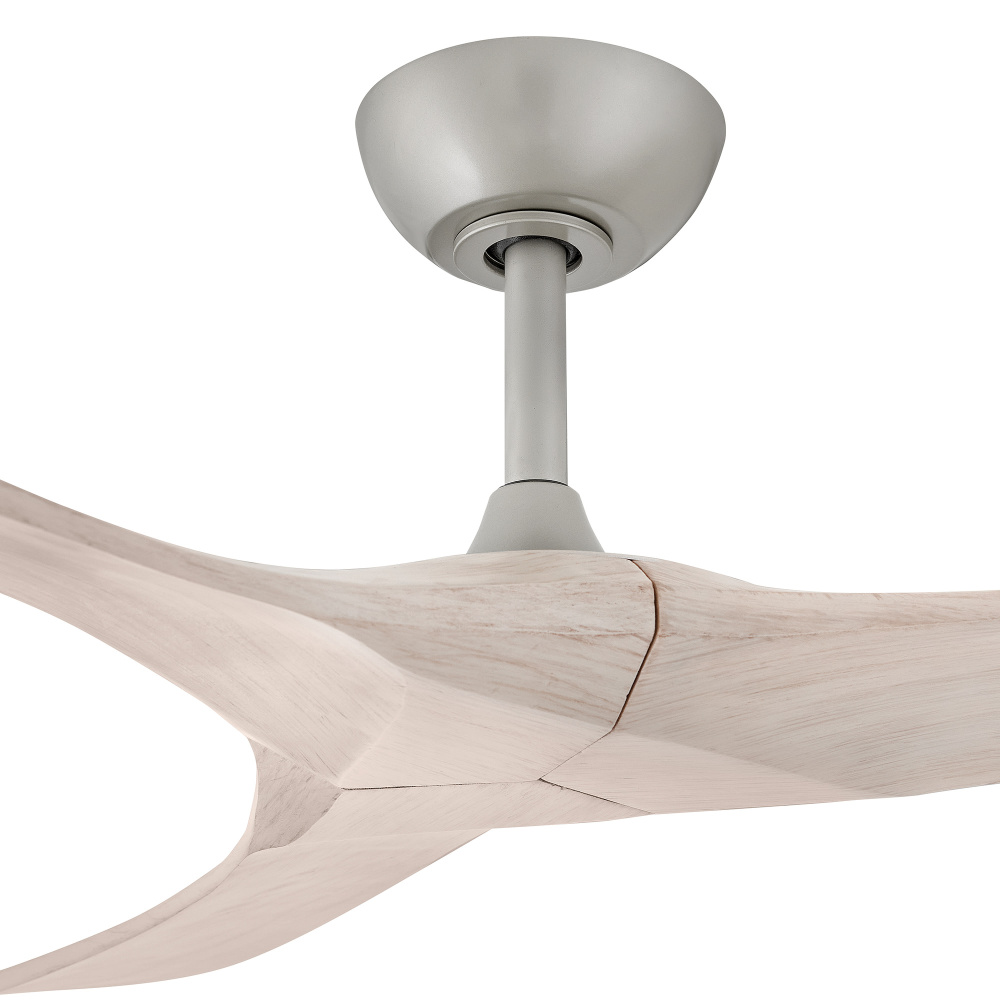

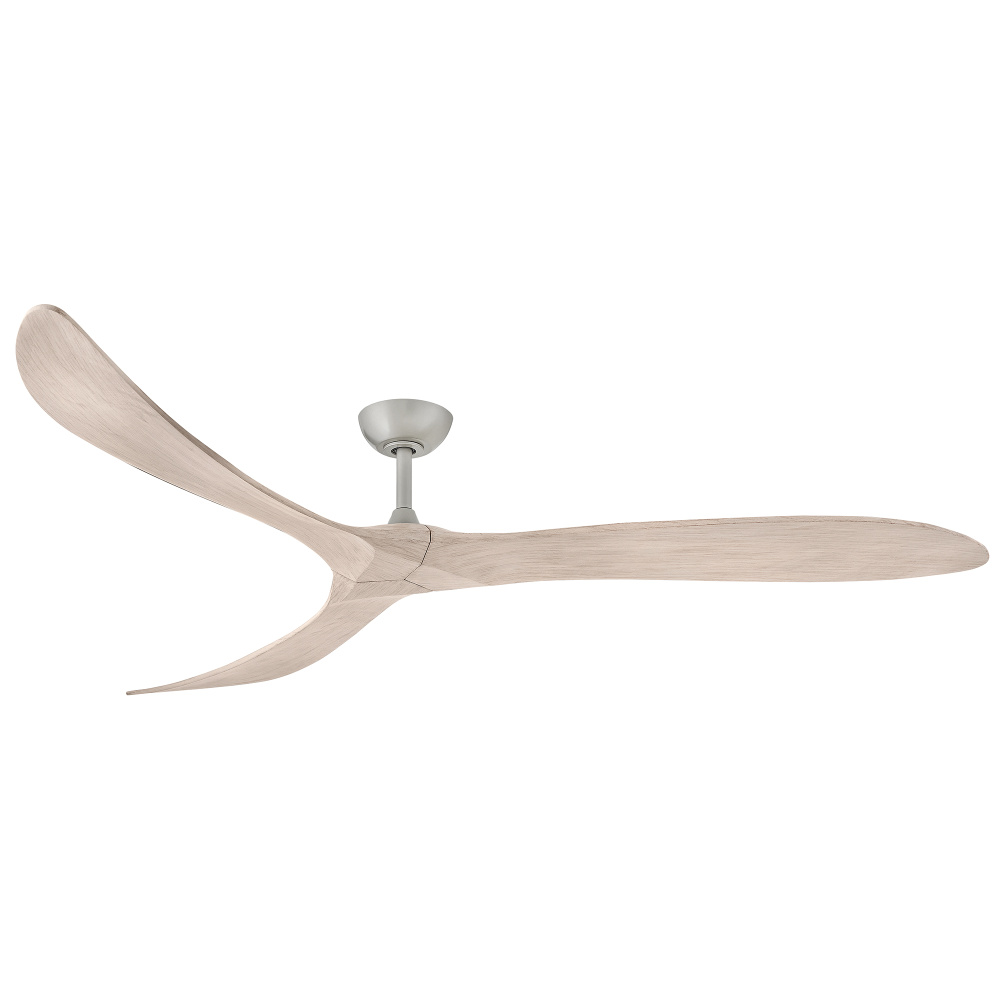

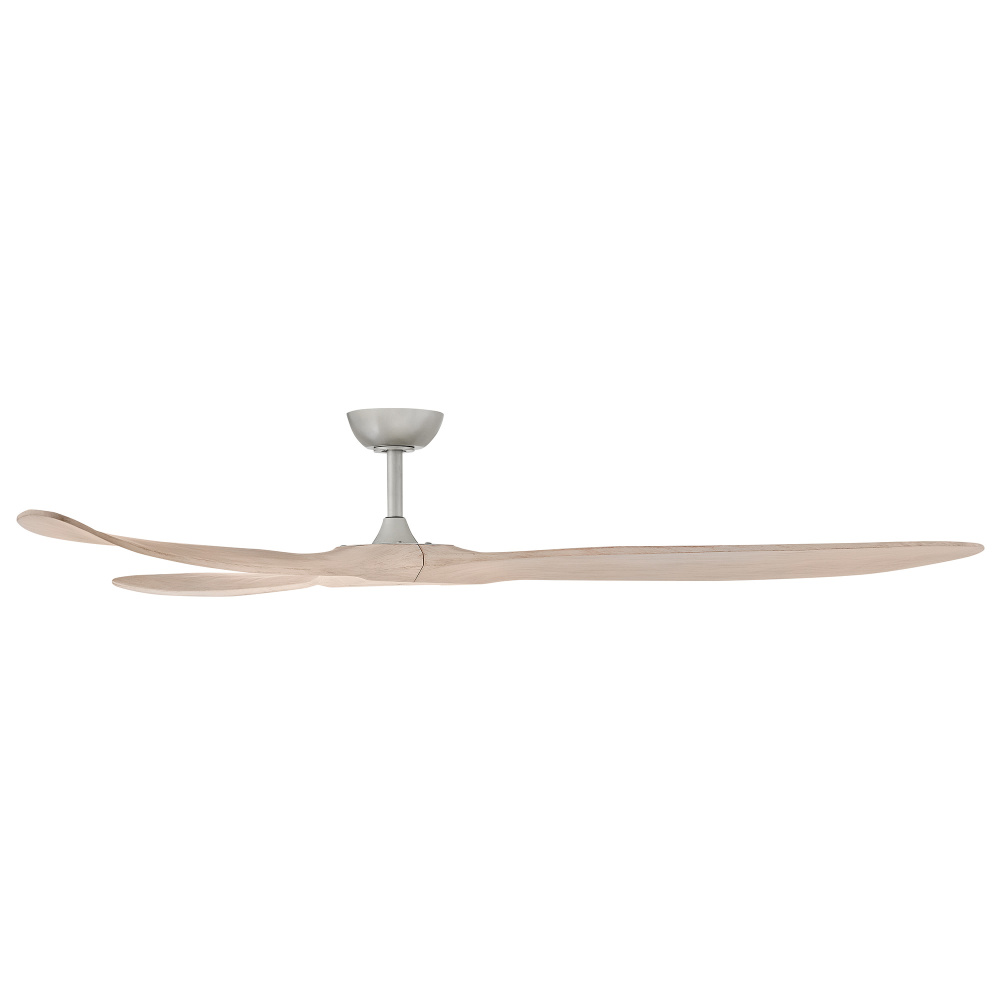

Swell 80" Smart Fan (A0AT6)

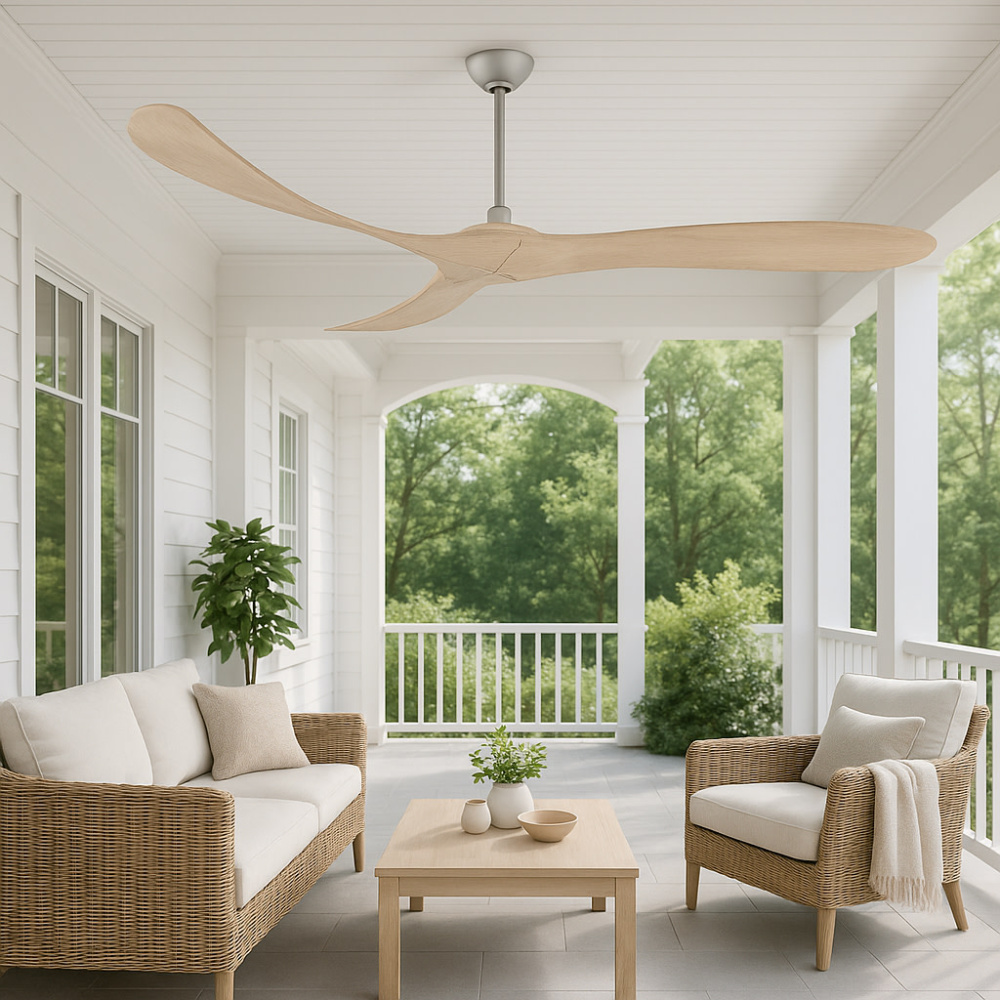

Swell is sophisticated and distinct in design without sacrificing its purpose. Available in a variety of finish colors and combinations, Swell sets the tone for all contemporary spaces. Swell is damp rated, making it perfect for both interior and outdoor settings. Operated by the HIRO control or WiFi compatible with the Hinkley app.
Downloads
Product Specification
Item #
A0AT6
Dimensions
Height: 11.50"
Width: 80.00"
Length: 80.00"
Additional product details
Internal #
A0AT6
Finish
Nickel
Style
Modern
Option
Damp Rated
Voltage
100-120
Location Rating
Damp Rated
Smart Home
Yes
Category
Fan
Finish
Brushed Nickel
Style
Modern
Family
Swell
Voltage
120 V
Air Flow Efficiency
10613
Amperage
0.55

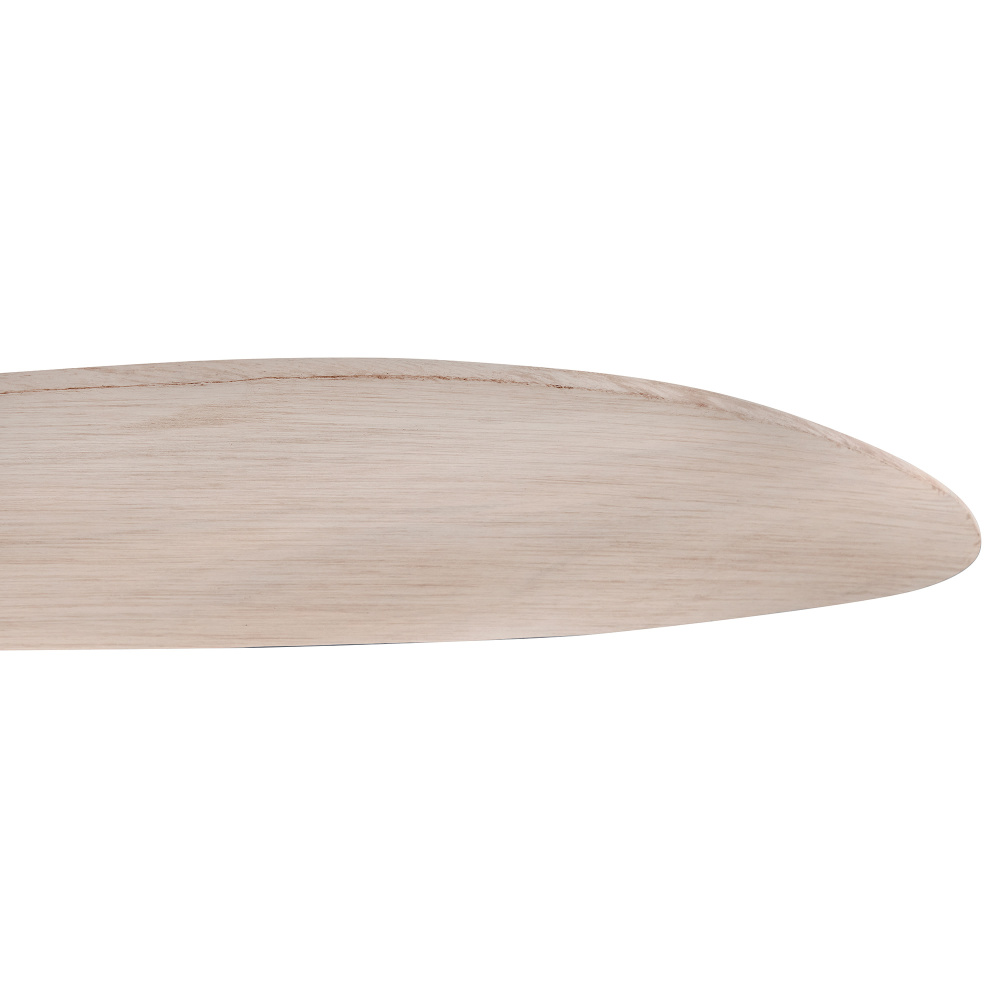

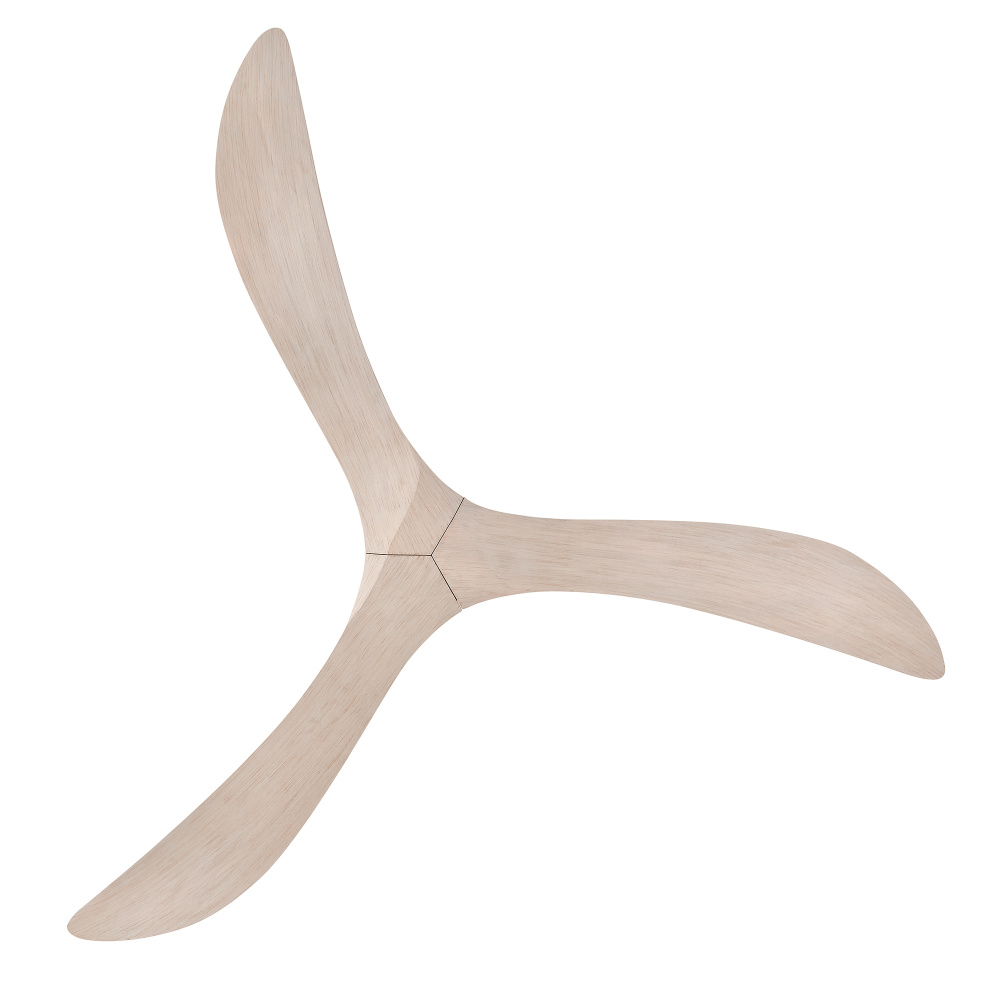

Blade Finish
Bleached Ashwood
Blade Pitch
14
Blade Span
80
Canopy
6.5 Dia x 2.25 D
Introduction Date
01/01/2026
Light Kit Included
No
Material
Steel
Motor Type
DC
Ship Carton Height
11
Ship Carton Length
42
Ship Carton Width
12
Ship Weight
22.66
Vendor Ship Method
Parcel
Weight
14.74
Airflow Avg
7561
AMPS Avg
0.21
Avg Airflow Efficiency
301
Avg Energy Use Watts
25
Blade Material
Wood
Blade Sweep
80
Blade To Ceiling Height
9
Blades Reversible
No
Bulb Included
No
Control Type
HIRO Control - 6 Speed Reversing
Country of Origin
China
Efficiency High
263
Energy Cost Avg
7
Energy Cost High
9
Energy Use High
40.3
Fan Control
Yes
Flush Mount Fan
No
Install Sloped Ceiling
Yes
Light Kit Adaptable
No
Light Kit Included Removeable
No
Location Rating
Damp Rated
Motor Fan Speed
6
Motor Name
153x16
Number of Blades
3
Operating Frequency
60
Prop 65 Description
CALIFORNIA PROP 65: WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Receiver Included
Yes
Reversing Control
Yes
RPMS Avg
74
RPMS High
120
Safety Rating
ETL Approved
Slope Degree
20
Stand By Power
0.2
Title 24
No
Uplight 2
No
WIFI Control Included
Yes
Other Details:
- Bold silhouette with dramatic details creates a modern statement
- Can be hung on a sloped ceiling
- Control your fan's power, light, speed, direction, and so much more from the Hinkley Home Automation app
- Damp rated fans are ideal for fully covered outdoor areas, bathrooms, garages, and sunrooms
- Equipped with an energy-efficient DC motor
- Fan Control included, 6 Spd HIRO:R

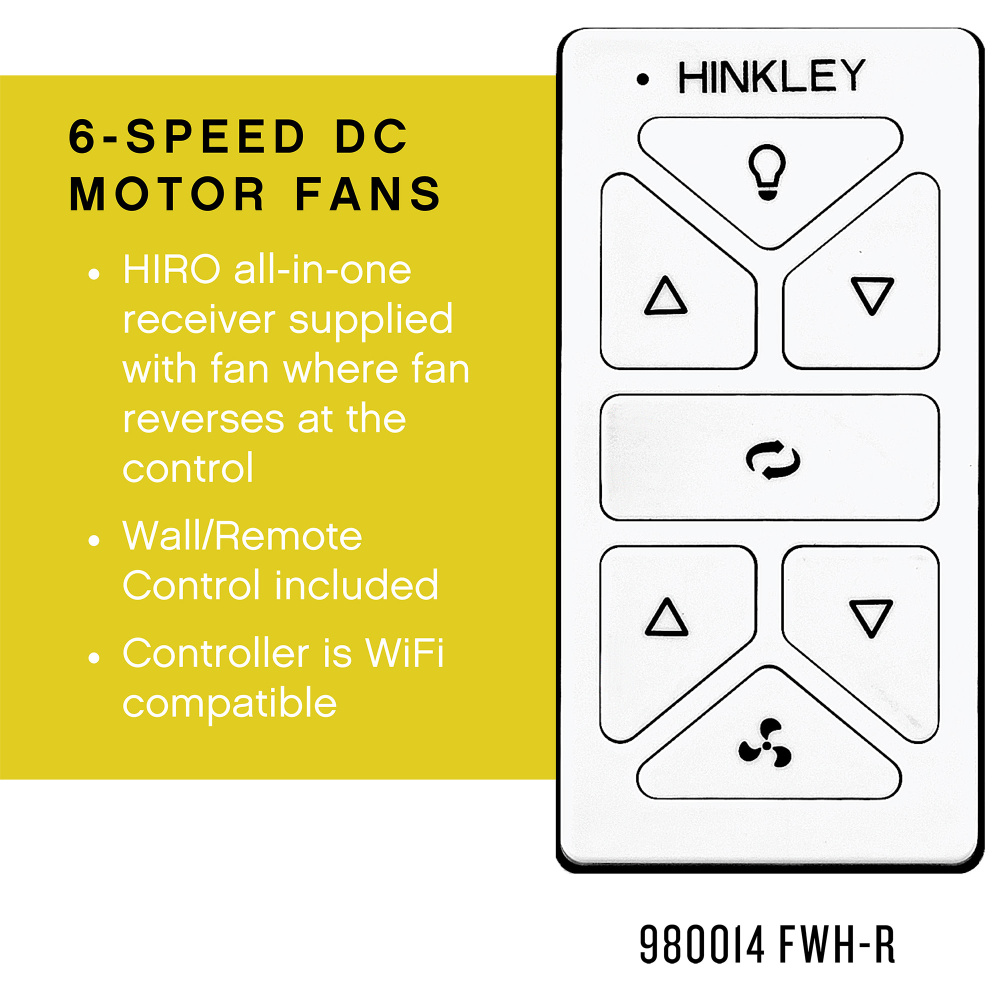

- Fan Control included, HIRO Control - 6 Speed Reversing. All-in-one HIRO remote controls power, speed, direction, and lighting; use as a wall control or portable remote
- FAN: 6" Rod Included, FAN: 7ft from floor, Install Sloped Ceiling
- FAN: DC Motor
- Fans should be installed at a minimum of 7 feet from the floor
- This item includes a 6" down rod (other lengths of down rods are available)
- WiFi Enabled Smart Fan is compatible with your home’s WiFi network
Call for Price
BASE PRICE:
$
943
95
/
/ 1
($943.95 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
- Manufacturer may be Out Of Stock.
- Item may be on Backorder until 01/31/2026 or later.
