Swell 60" Smart Fan (9Q3TC)

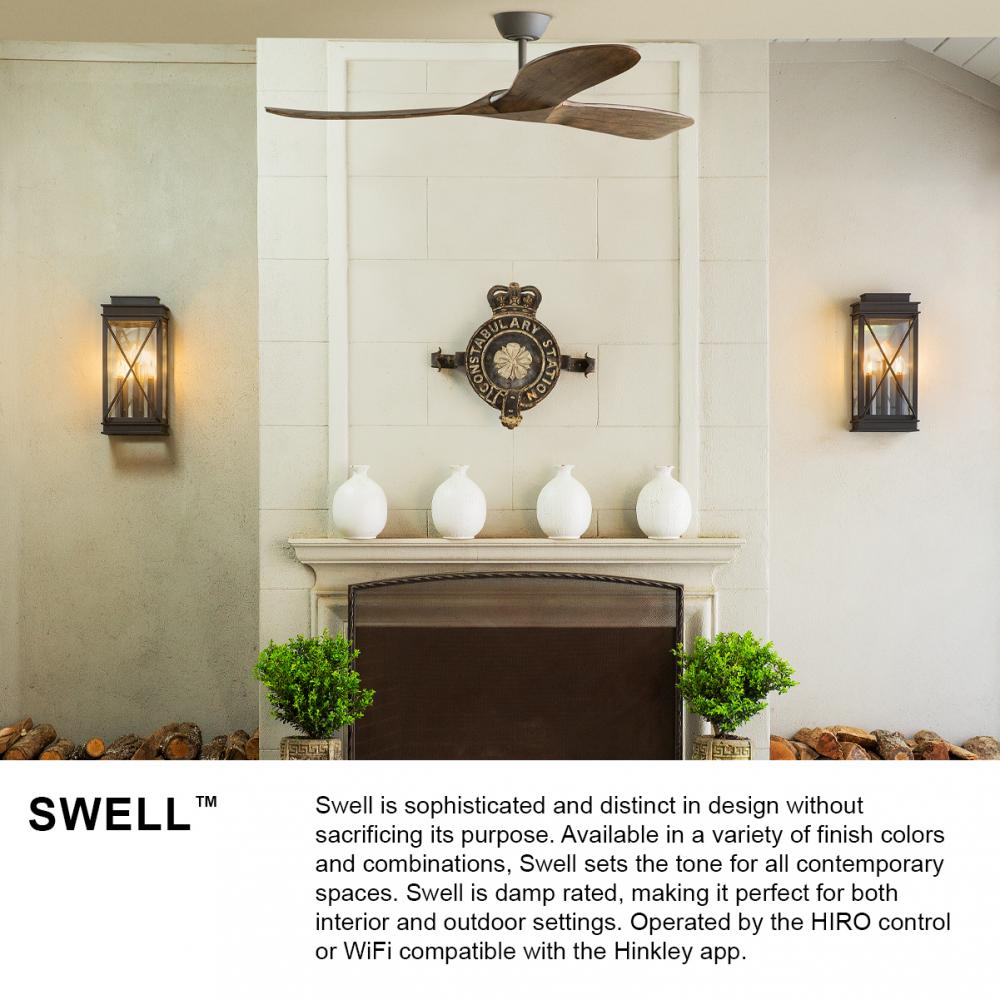

Swell is sophisticated and distinct in design without sacrificing its purpose. Available in a variety of finish colors and combinations, Swell sets the tone for all contemporary spaces. Swell is damp rated, making it perfect for both interior and outdoor settings. Operated by the HIRO control or WiFi compatible with the Hinkley app.
Product Specification
Item #
9Q3TC

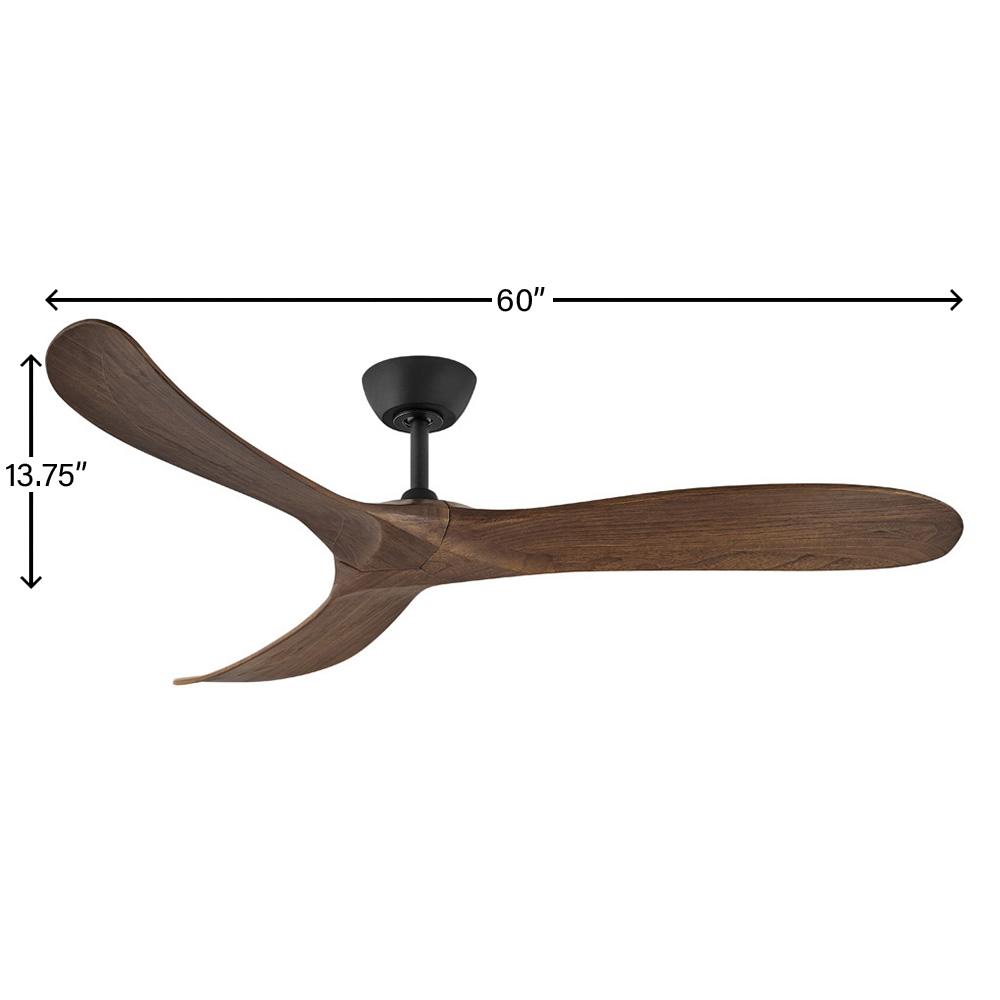

Dimensions
Height: 13.75"
Width: 60.00"
Length: 60.00"
Additional product details
Internal #
9Q3TC
Category
Fans
Subcategory
Ceiling Fans
Finish
Black
Style
Modern
Option
Title 24
, Damp Rated
, Prop 65
Voltage
100-120
Number of Blades
3 Blades
Subfinish
Matte Black
Location Rating
Damp Rated
Category
Fan
Finish
Matte Black
Style
Modern
Family
Swell
Voltage
120 V
Air Flow Efficiency
8521
Amperage
0.47
Blade Finish
Walnut
Blade Pitch
14
Blade Span
60
Blades Included
Yes
Canopy
6 Dia. x 2.5 D
Introduction Date
01/01/2021
Light Kit Included
No
Material
Steel
Motor Size
130 x 16
Motor Type
DC
Ship Carton Height
11.42
Ship Carton Length
34.06
Ship Carton Width
12.6
Ship Weight
18.74
Vendor Ship Method
Parcel
Weight
16.1

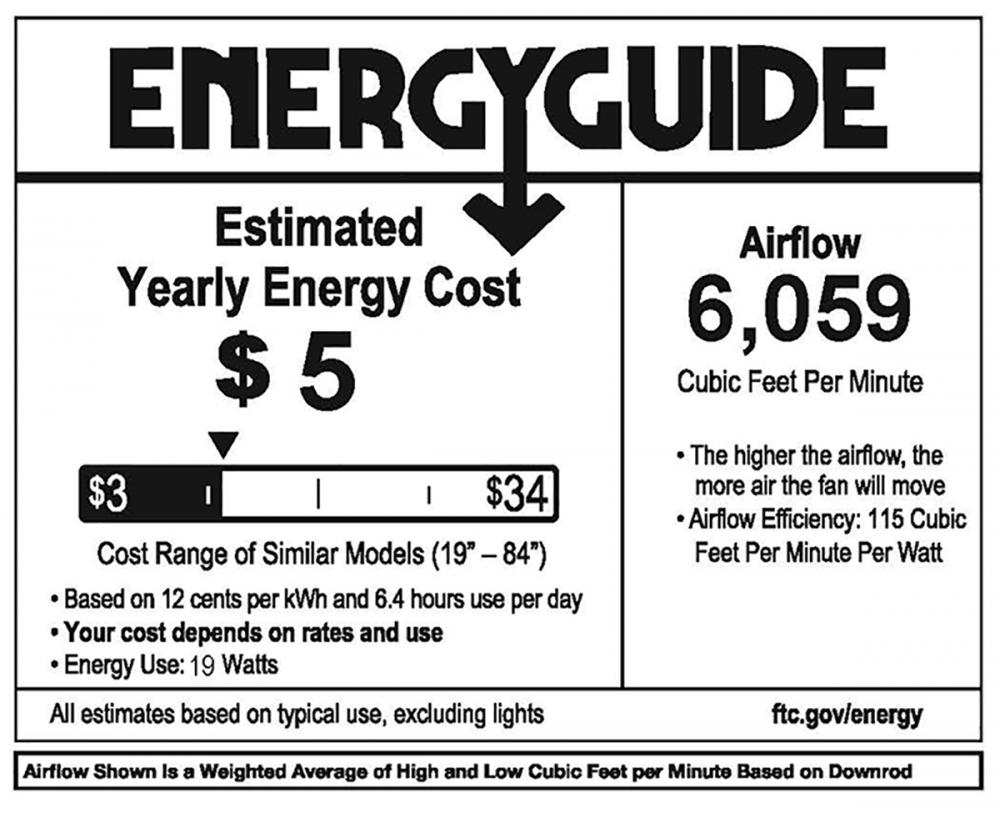

Airflow Avg
6059
AMPS Avg
0.28
Avg Energy Use
19
Blade Material
Wood
Blade Options Available
No
Blade To Ceiling Height
13.75
Blades Reversible
No
Bulb Included
No

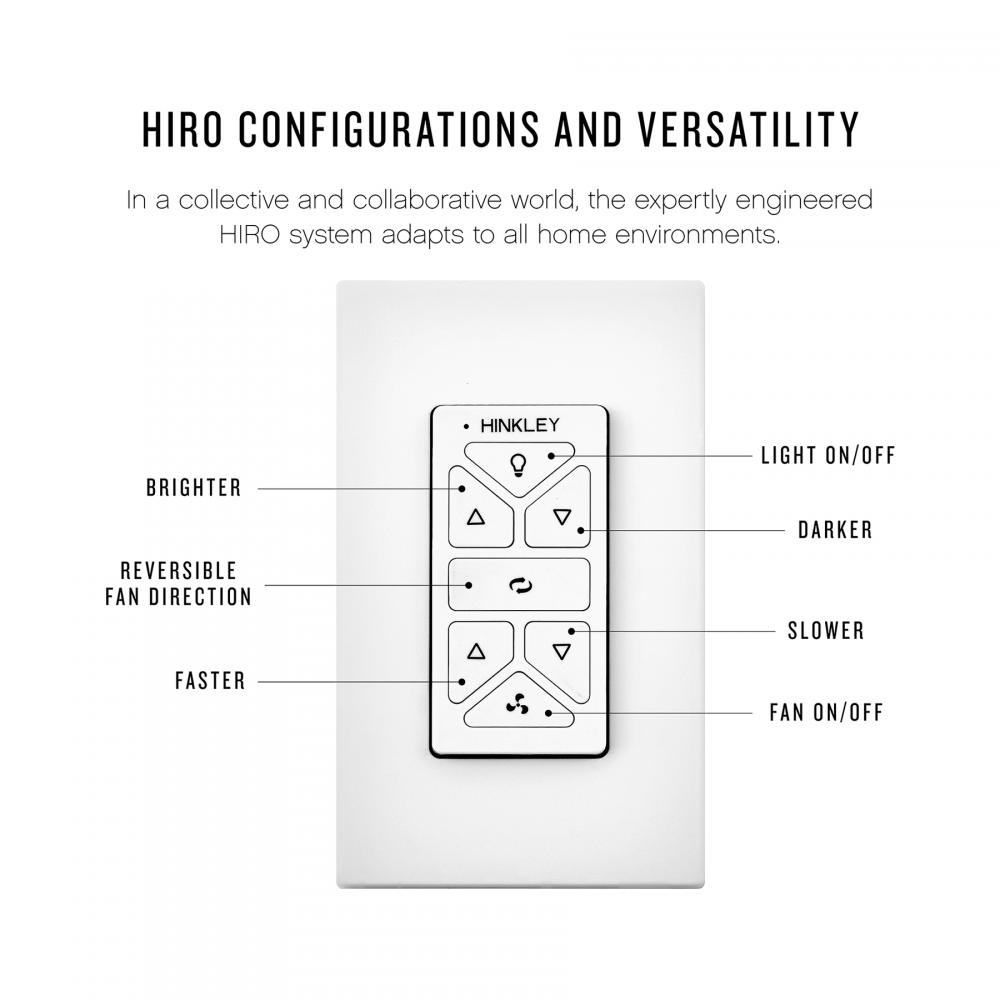

Control Type

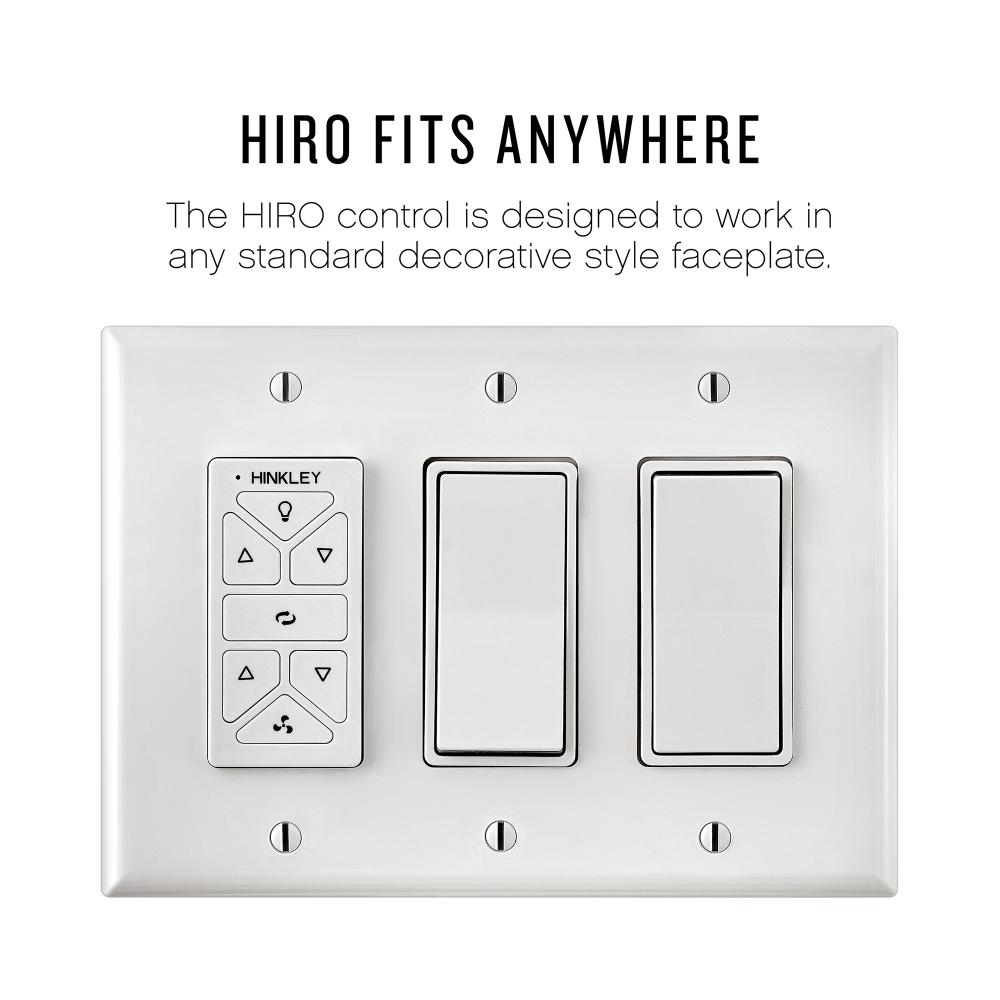

HIRO Control - 6 Speed Reversing
Country of Origin
Taiwan
Dual Mount
No
Efficiency Avg
325
Efficiency High
279
Energy Cost Avg
5
Energy Cost High
9
Energy Use High
30.5
Fan Control
Yes
Flush Mount Fan
No
Light Kit Adaptable
No
Location Rating
Damp Rated
Motor Fan Speed
6
Number of Blades
3
Operating Frequency
60
Prop 65 Description
CALIFORNIA PROP 65: WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Receiver Included
Yes
Reversing Control
Yes
RPMS Avg
106
RPMS High
155
Safety Rating
ETL Approved, C-US Approved
Single Power Switch
Yes
Slope
20
Sloped Ceiling Adaptable
Yes
Stand By Power
0.2
Title 24
No
WIFI Control Included
Yes
WIFI Control Optional
No
Other Details:
- Blades, controls, switches, capacitors and hardware carry a 1-year warranty
- Bold silhouette with dramatic details creates a modern statement

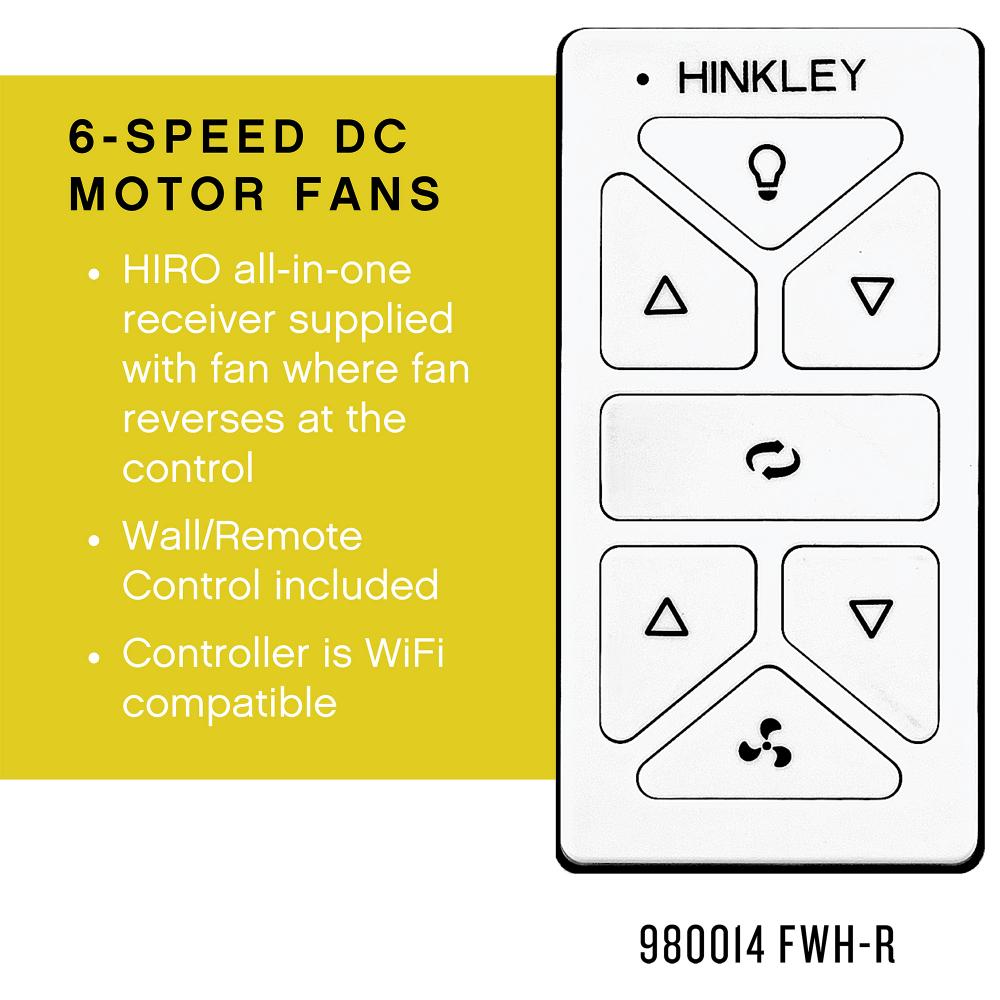

- Fan Control included, HIRO Control - 6 Speed Reversing
- Fans should be installed at a minimum of 7 feet from the floor
- For more information on how to control your ceiling fan via the Hinkley Home Automation App, click here.
- Motor carries a lifetime warranty
- Powered by a highly efficient and quiet DC motor
- Suitable for use in damp locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards.
- This item includes a 6" down rod. Other various lengths of down rods are available and sold separately to customize the installation height.
- This item may be hung on a sloped ceiling
- WiFi compatible with included fan control
