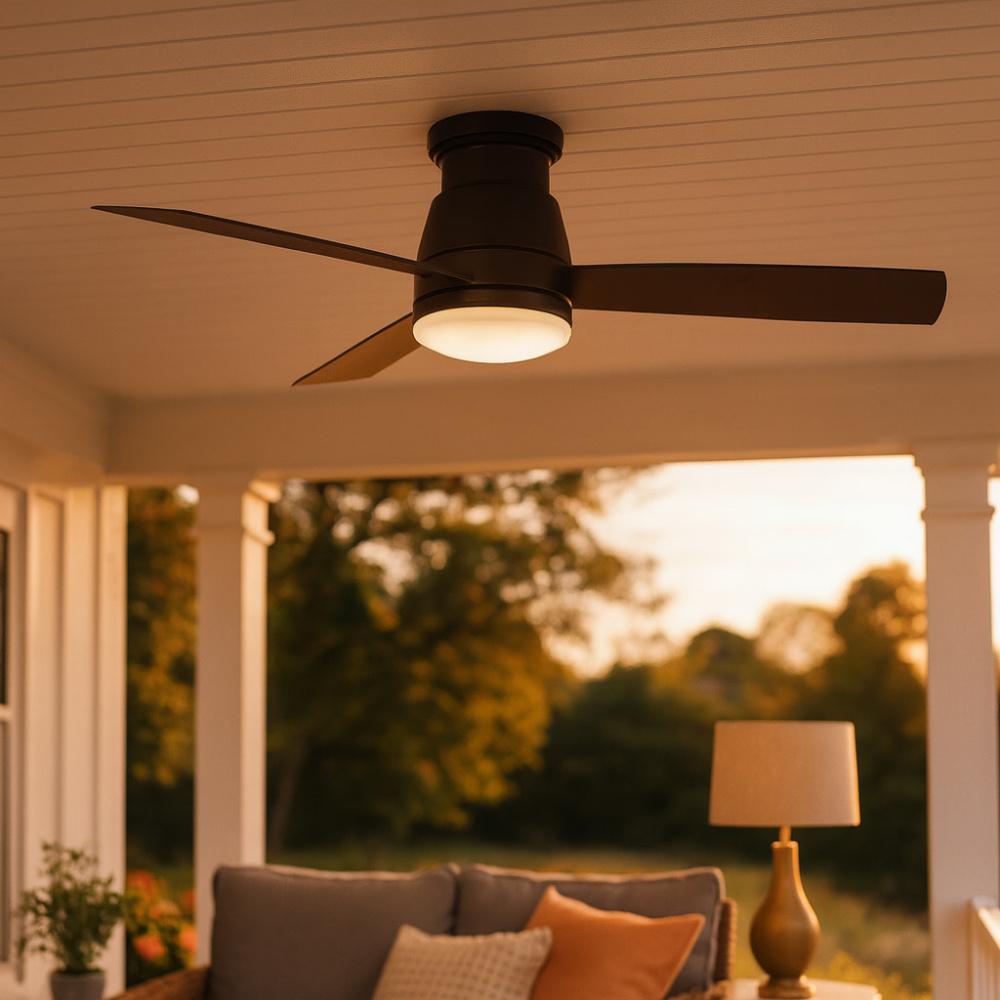

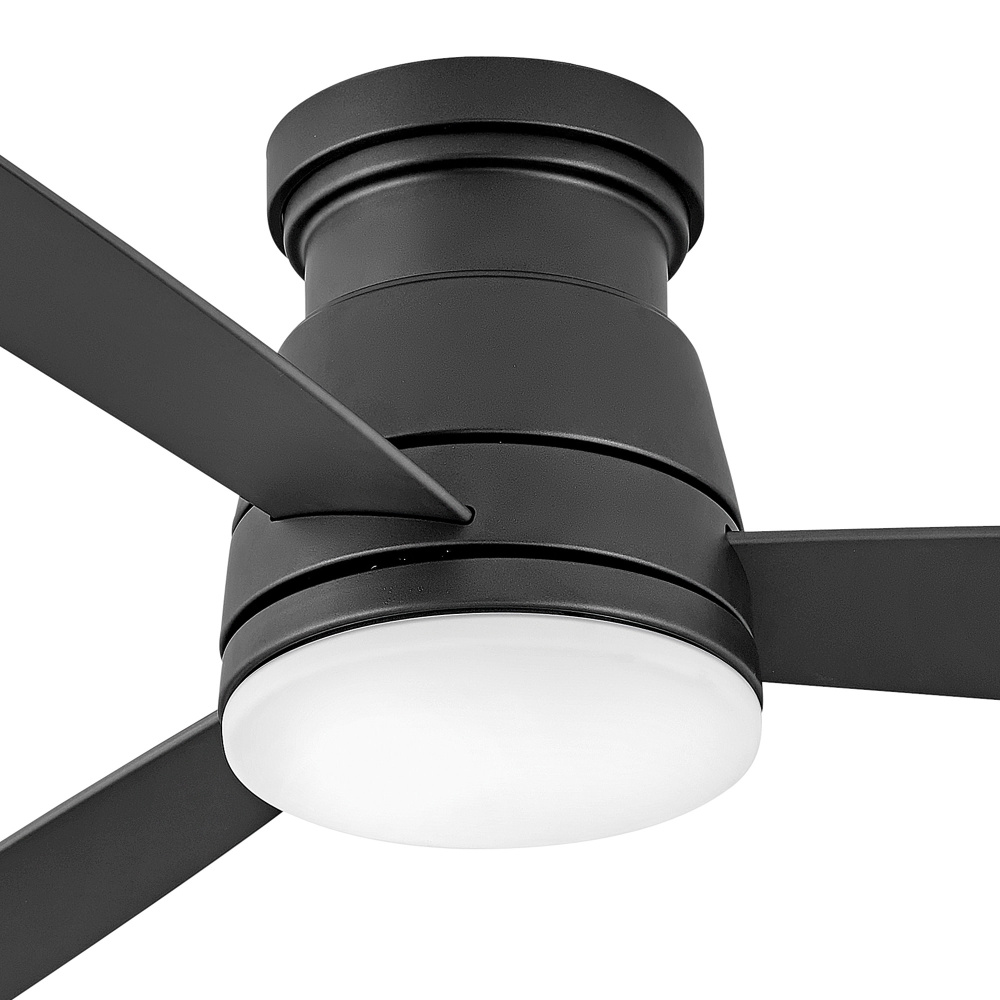

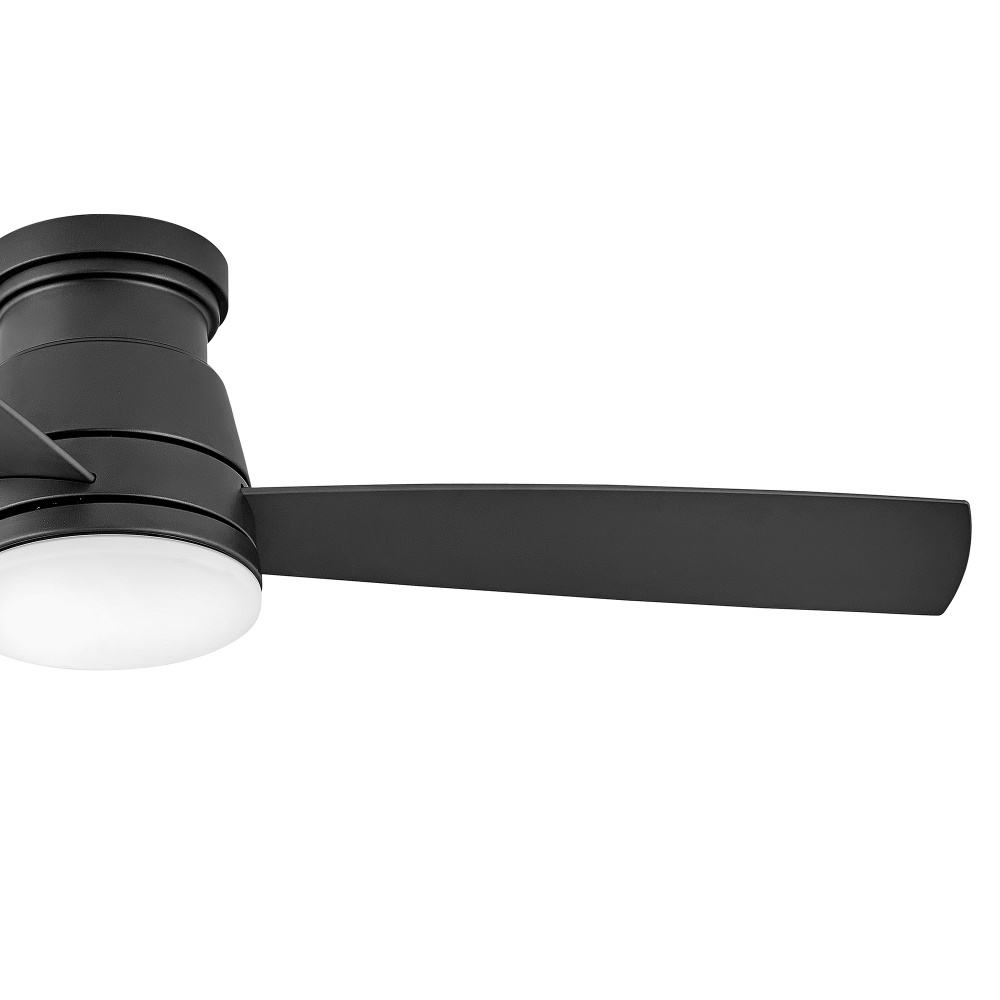

Trey 52" LED Smart Fan (A0ATA)
Trey features a sleek flush mount design that packs a powerful punch. Its transitional style comes equipped with robust blades that seamlessly pair performance and precision. Trey is offered in versatile finish options, and its integrated LED lighting and DC motor technology deliver excellent energy efficiency. A timeless etched opal light kit completes the look for a refined appearance. Trey is so versatile; it can be used for both indoor and outdoor spaces. Blades are included with every fan.
Downloads
Product Specification
Item #
A0ATA

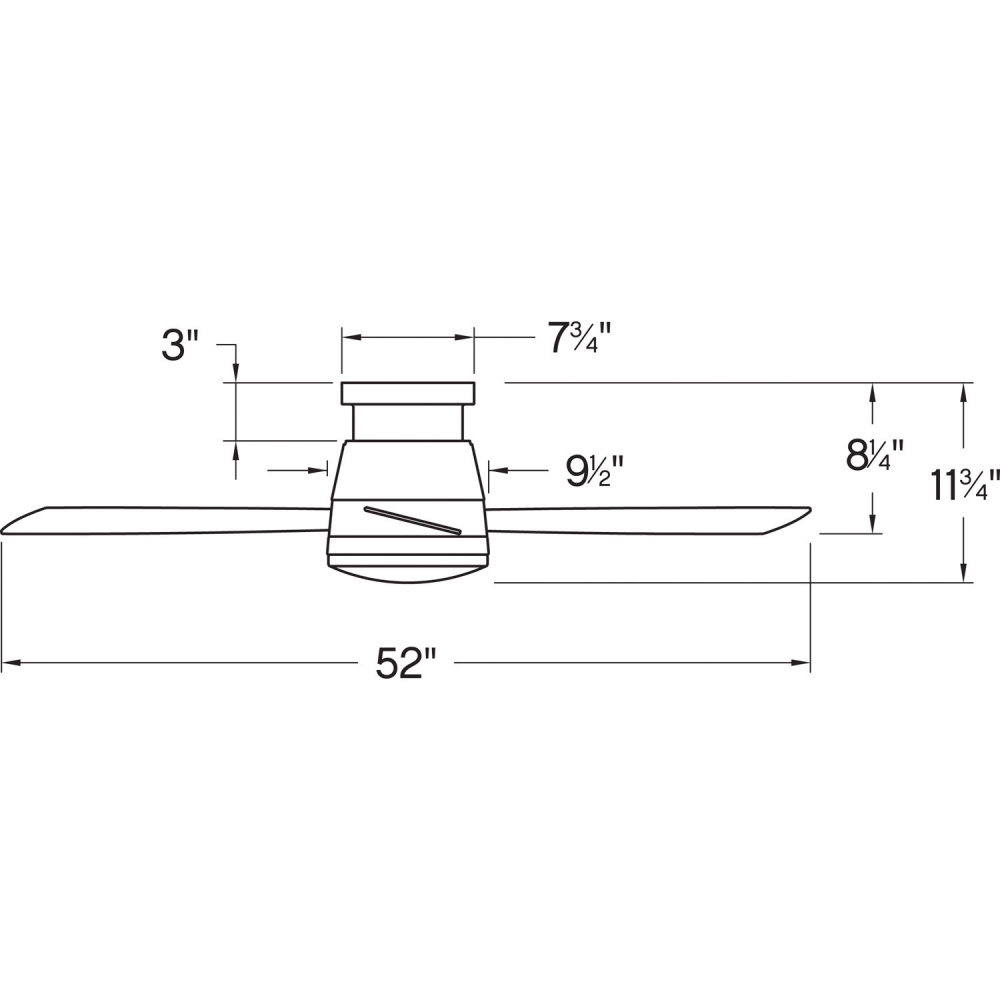

Dimensions
Height: 11.75"
Width: 52.00"
Length: 52.00"
Additional product details
Internal #
A0ATA
Finish
Black
Style
Transitional
Option
Title 24
, Wet Rated
, LED
Voltage
100-120
Glass Finish or Style
Etched
, Opal
Lumens
1101-1600

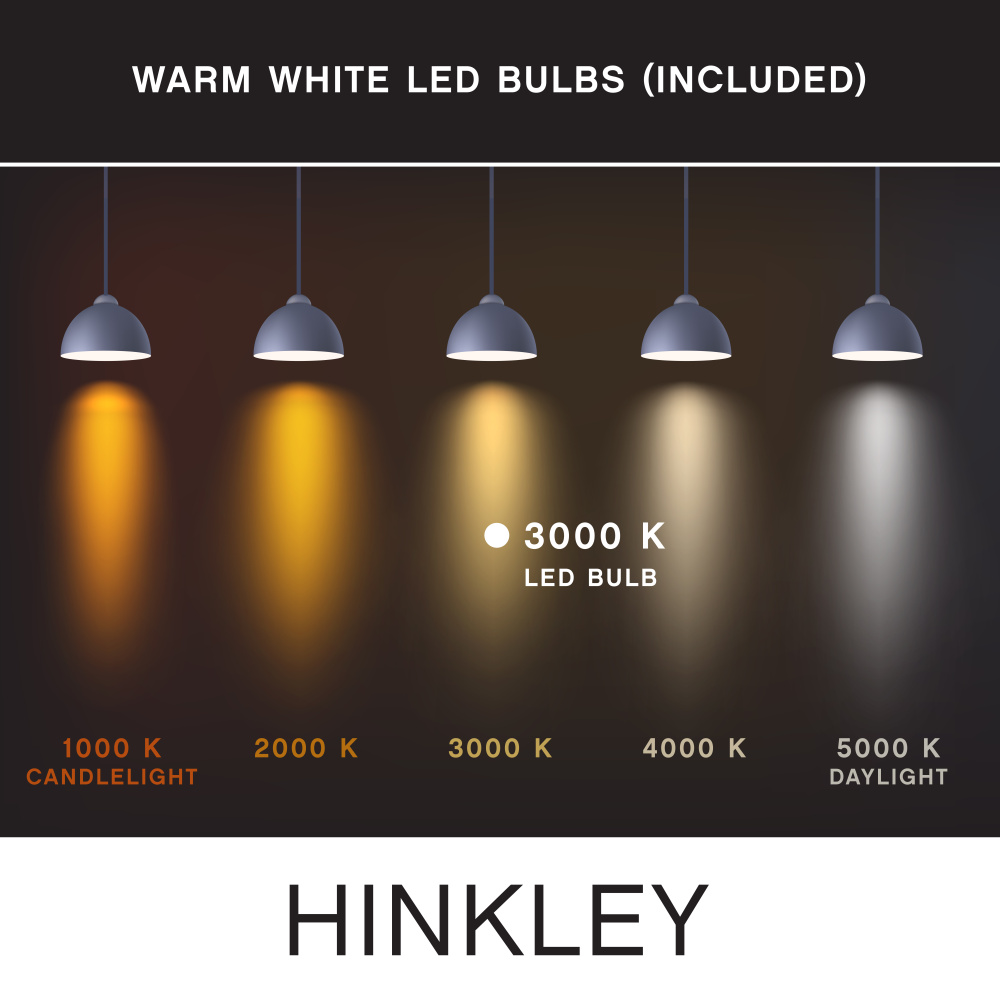

Kelvin
2501-3000
Location Rating
Wet Rated
Smart Home
Yes
Category
Fan
Finish
Matte Black
Style
Transitional
Option
LED
, Title 24
Family
Trey
Glass
Etched Opal
Voltage
120 V
Number of Bulbs
1 Bulbs
Air Flow Efficiency
4827
Amperage
0.43
Blade Finish
Matte Black
Blade Pitch
14
Blade Span
52
Bulb Dimmable
Yes
Bulb Hours
50000
Bulb Type
LED
Canopy
7.5 Dia
Introduction Date
01/01/2026
Kelvin
3000
Light Kit Included
Yes
Lumens / Light Output
1320
Material
Aluminum
Motor Type
DC
Ship Carton Height
12.5
Ship Carton Length
26
Ship Carton Width
12
Ship Weight
26.5
Vendor Ship Method
Parcel
Weight
24.5
Airflow Avg
3120
AMPS Avg
0.24
Avg Airflow Efficiency
205
Avg Energy Use Watts
19
Blade Material
Composite
Blade Sweep
52
Blade To Ceiling Height
8.25
Blades Reversible
No
Bulb CRI
90
Bulb Included
Yes
Control Type
HIRO Control - 6 Speed Reversing
Country of Origin
China
Dimmer Type
CL Type (SSL7A)
Efficiency High
200
Energy Cost Avg
5
Energy Cost High
9
Energy Use High
19
Fan Control
Yes
Flush Mount Fan
Yes
Glass Groups
White
Incandescent Equivalency
100 W
Install Sloped Ceiling
No
LED
Yes
Light Kit Adaptable
No
Light Kit Included Removeable
Yes
Light Source
Integrated LED
Location Rating
Wet Rated
Max Wattage
16 W
Motor Fan Speed
6
Motor Name
DC153x10
Number of Blades
3
Operating Frequency
60
Prop 65 Description
CALIFORNIA PROP 65: WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Receiver Included
Yes
Reversing Control
Yes
RPMS Avg
153
RPMS High
260
Safety Rating
ETL Approved
Title 24
Yes
Uplight 2
No
WIFI Control Included
Yes
Other Details:
- Control your fan's power, light, speed, direction, and so much more from the Hinkley Home Automation app
- Energy-efficient integrated LED - safer for the environment and low maintenance
- Fan Control included, 6 Spd HIRO:R

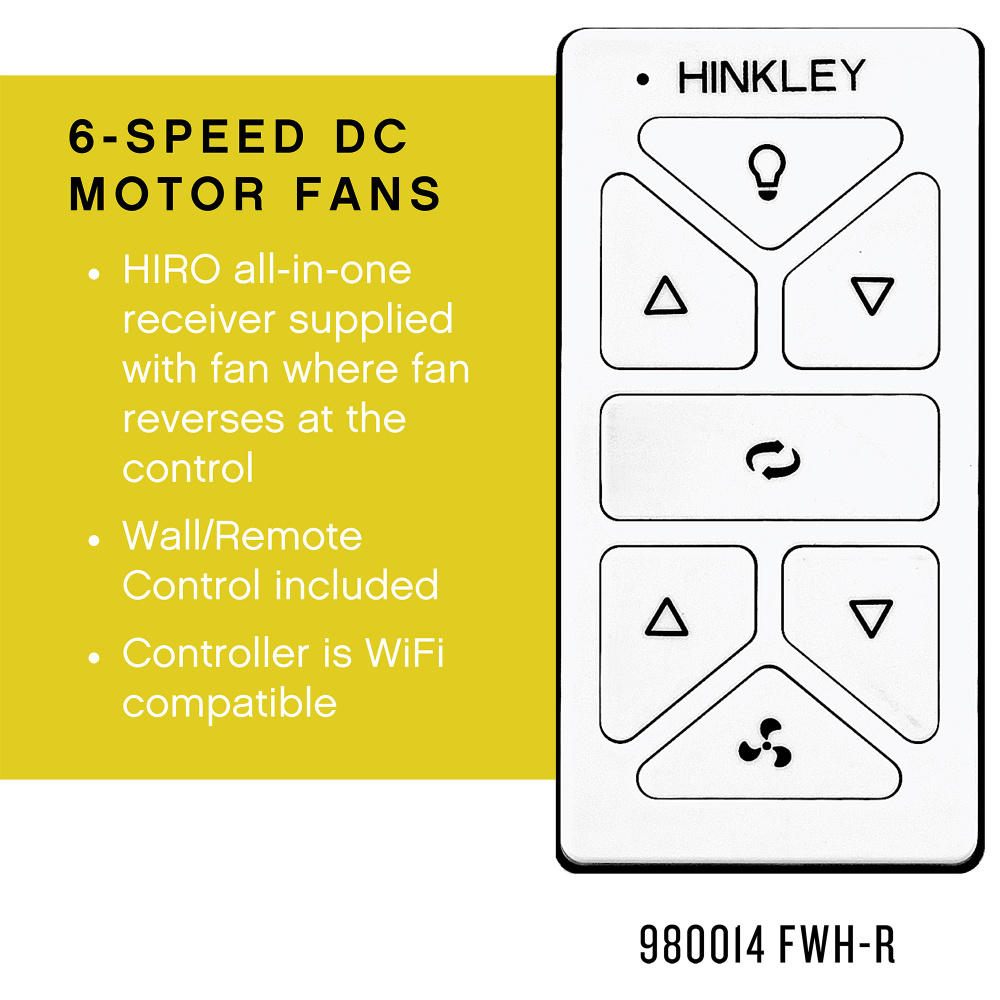

- Fan Control included, HIRO Control - 6 Speed Reversing. All-in-one HIRO remote controls power, speed, direction, and lighting; use as a wall control or portable remote
- FAN: 7ft from floor
- Fans should be installed at a minimum of 7 feet from the floor
- LED components carry a 5-year limited warranty
- Merging the best of traditional and modern elements with a sophisticated and streamlined look
- Motor carries a lifetime warranty
- Wet rated fans are a must in an area exposed to the elements or where condensation or high humidity are factors
- WiFi Enabled Smart Fan is compatible with your home’s WiFi network
