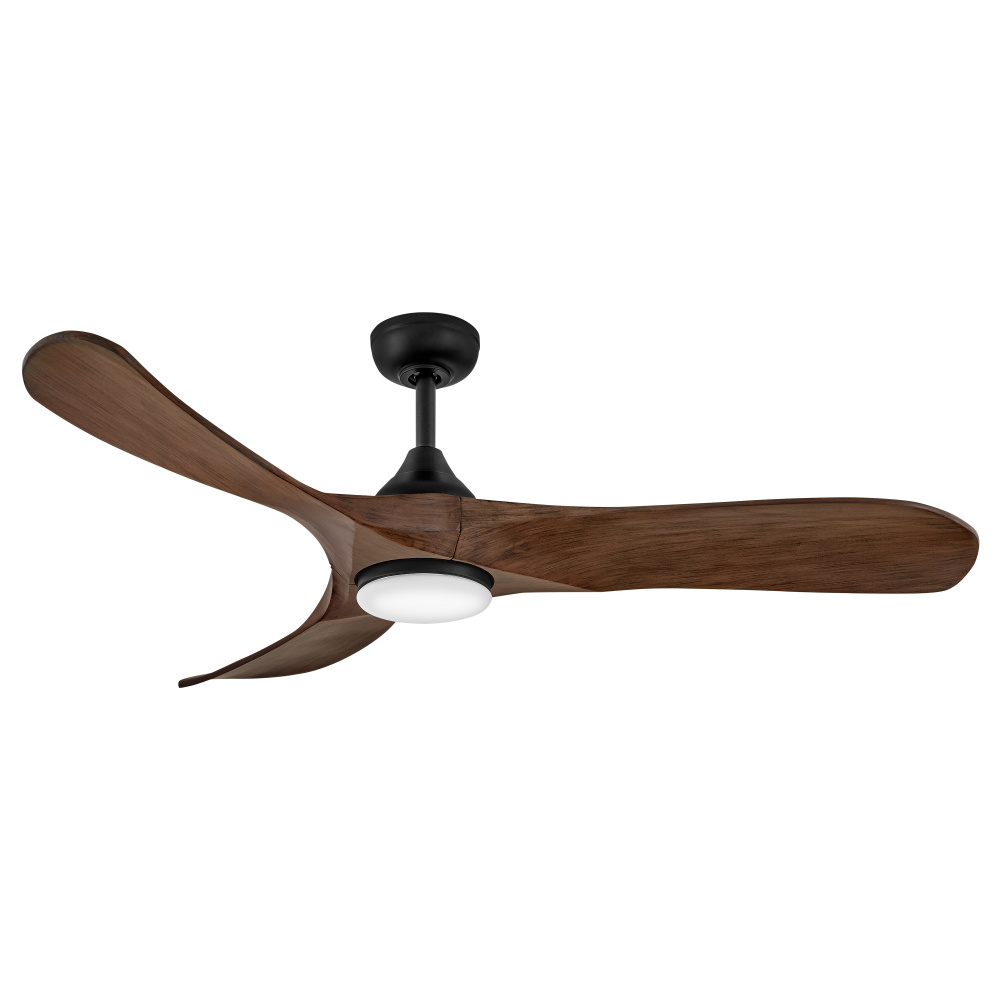

Swell Illuminated 56" LED Smart Fan (9X38T)
Sophisticated and distinct, Swell Illuminated perfectly sets the scene in contemporary spaces without sacrificing functionality - featuring integrated LEDs complemented by a variety of classic finish combinations. A versatile, damp-rated design makes Swell perfect for both interior and outdoor settings. Equipped with a 6-speed DC motor that is WiFi enabled and ready to connect right out of the box. Operated by the HIRO control or WiFi compatible with the Hinkley app.
Downloads
Product Specification
Item #
9X38T
Dimensions
Height: 15.00"
Width: 56.00"
Length: 56.00"
Additional product details
Internal #
9X38T
Category
Fans
Subcategory
Ceiling Fans with Light
Finish
Black
Style
Modern
Option
Damp Rated
Category
Fan
Finish
Matte Black
Style
Modern
Family
Swell
Glass
Etched Opal
Voltage
120 V
Number of Bulbs
1 Bulbs
Air Flow Efficiency
7708
Amperage
0.48
Blade Finish
Walnut
Blade Pitch
10
Blade Span
56
Blades Included
Yes
Bulb Dimmable
Yes - CL Type Dimmer (SSL7A)
Bulb Hours
50000
Bulb Type
LED
Canopy
6 Dia. x 2.25 D
Introduction Date
01/01/2024
Kelvin
3000
Light Kit Included
Yes
Lumens / Light Output
1320
Material
Steel
Motor Size
DCS-30NS
Motor Type
DC
Ship Carton Height
12.4
Ship Carton Length
37.9
Ship Carton Width
15.4
Ship Weight
30.8
Vendor Ship Method
Parcel
Weight
28.6
Airflow Avg
5227
AMPS Avg
0.27
Avg Energy Use
23
Blade Material
Wood
Blade Options Available
No
Blade To Ceiling Height
10.75
Blades Reversible
No
Bulb CRI
90
Bulb Included
Yes
Control Type
HIRO Control - 6 Speed Reversing
Country of Origin
Taiwan
Dual Mount
No
Efficiency Avg
224
Efficiency High
223
Energy Cost Avg
7
Energy Cost High
9.7
Energy Use High
34.6
Fan Control
Yes
Flush Mount Fan
No
Incandescent Equivalency
100 W
Light Kit Adaptable
No
Light Source
Integrated LED
Location Rating
Damp Rated
Max Wattage
16 W
Motor Fan Speed
6
Number of Blades
3
Operating Frequency
60
Prop 65 Description
CALIFORNIA PROP 65: WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Receiver Included
Yes
Reversing Control
Yes
Rpms Avg
104
RPMS High
157
Safety Rating
UL Approved, C-US Approved
Single Power Switch
No
Slope
20
Sloped Ceiling Adaptable
Yes
Stand By Power
1.31
Title 24
No
WIFI Control Included
Yes
WIFI Control Optional
No
Finish
Additional options that would change other selections
Blade Finish
Additional options that would change other selections
Call for Price
BASE PRICE:
$
974
90
/
/ 1
($974.90 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
- Manufacturer has 101 items available.
